Mine Machines Tsis Siv Neeg Hluav Taws Xob Tiv Thaiv Hluav Taws Xob

Mine Machines Tsis Siv Neeg Hluav Taws Xob Tiv Thaiv Hluav Taws Xob

Keeb kwm:
Cav compartments ntawm mining machinery tsheb yog nyiam mus ntes hluav taws ntau tshaj li lwm yam enclosures vim li no: luv luv Circuit Court, cav
hnav, kub qhov chaw, txo cov khoom siv ruaj khov, siv cov yas, encapsulation ntawm lub cav, roj, thiab cov khib nyiab. Nws tsis yog
xav tsis thoob tias ntau tshaj 70 feem pua ​​​​ntawm tag nrho cov tsheb hluav taws kub tshwm sim nyob rau hauv lub cav compartment. Txij li cov tsheb tsuas yog siv rau kev lag luam mining, kev tiv thaiv hluav taws ntawm cov tsheb mining yuav tsum yog qhov tseem ceeb tshaj plaws ntawm txhua tus neeg tsav tsheb mining los yog cov chaw tsim khoom.
1. KHOOM PLIG

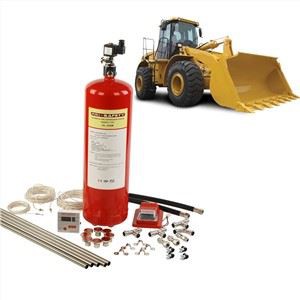

Lub tshuab hluav taws xob tsis siv neeg lub tshuab hluav taws xob muaj lub tog raj kheej lub tog raj kheej, lub tshuab solenoid valve nrog lub ntsuas siab, lub raj xa tawm, lub tswb hluav taws xob, tswj vaj huam sib luag thiab ntsuas cua sov.
Lub tank tuaj yeem ntim nrogDej, AFFF3% Ua Npuas Ncauj, FM200, lossis tus neeg sawv cev qhuav hmoov, thiab tau ntim nrog tus nqi tsim nyog ntawm kev tsav tsheb roj nitrogen.
Cov tshuab nrog cov neeg sawv cev sib txawv yog nrog cov raj xa tawm sib txawv thiab cov nozzles.

1). Khoom nta.
* Kev tshawb pom sai thiab ua haujlwm siab
* Rechargeable
* Kho rau qhov chaw hnyav
* Lub teeb yuag, tsis hnyav rau cov khoom siv

* Yooj yim installation thiab txij nkawm
* Haum rau lub luag haujlwm hnyav mining tshuab
* Commtrol vaj huam sib luag qhia qhov ntsuas kub ntawm lub sijhawm
* Muaj nyob rau hauv ntau tus neeg sawv cev: ua npuas ncauj, novec1230, dej pos huab, qhuav hmoov, FM200, thiab lwm yam

2). Khoom Specification.

2. KHOOM NTAUB NTAWV

1). Product Activated Principple

Nyob rau hauv lub pneumatic valve muaj ib tug piston, nws faib lub valve kab noj hniav mus rau 2 qhov chaw. Cov kab noj hniav sab saud txuas mus rau kev tshawb nrhiav lub raj, cov kab noj hniav hauv qab txuas mus rau lub raj mis. Lub siab ntawm 2 sab ntawm lub piston yog tib yam. Thaum lub sij hawm hluav taws kub, Thaum lub raj kuaj pom hluav taws thiab ruptured ib lub qhov tso tawm lub siab. Tom qab ntawd lub siab ntawm 2 sab ntawm lub piston tshwm sim txawv, lub piston tau txav mus rau, thiab qhov chaw nres nkoj ntawm lub valve tau qhib, thiab tus neeg sawv cev tau tawm ntawm cov yeeb nkab thiab cov nozzles. Nyob rau tib lub sijhawm, lub siab hloov xa mus kawg rau lub tswb nrov, lub tswb hluav taws tau qhib. Nyob rau hauv lub tswj vaj huam sib luag, muaj ib tug phau ntawv khawm thiab sim khawm, pib dua khawm. Thaum muaj xwm txheej ceev Nias lub khawm phau ntawv tuaj yeem qhib qhov hluav taws kub ib yam nkaus.

2). Kev kos duab rau siv

3. DAIM NTAWV THOV R107 SYSTEMS FOR DEETECTION TUBE MODEL

Kauj ruam 1:
Nrhav Tube ruptures rau lub qhov thaum kub ncav cuag 140ºC, thiab tso siab los ntawm lub qhov.(los yog thawb lub khawm phau ntawv
ntawm kev kuaj pom lub raj, lub siab tso tawm los ntawm kev tuav khawm.)

4. INSTALLATION EXAMPLE

5. Hais txog kev ntim khoom

6. Daim ntawv thov

Tsis tsuas yog siv nyob rau hauvMining tshuab:
САТ-773, САТ-777,Cat MT5300 mining tsheb, D6 CAT Dozer, Kab ntsig-992, Kab ntsig-994,
KOMATSU DUMP TRUCK 785/465, Komatsu PC 2000-8 Hydraulic Excavator...

tab sis kujtuaj yeem siv rau Txhua Lub Tsheb

Peb paub tias yog ib qho ntawm cov tuam txhab tshaj lij thiab cov neeg muag khoom ntawm ntau yam khoom siv kev nyab xeeb hauv Suav teb. Yog tias lub tshuab hluav taws xob tsis siv neeg tiv thaiv hluav taws ua tau raws li qhov koj xav tau, txais tos rau cov khoom siv zoo hauv Suav teb. Peb lub Hoobkas yuav muab kev pabcuam nres rau koj thiab ib xyoos lav.
